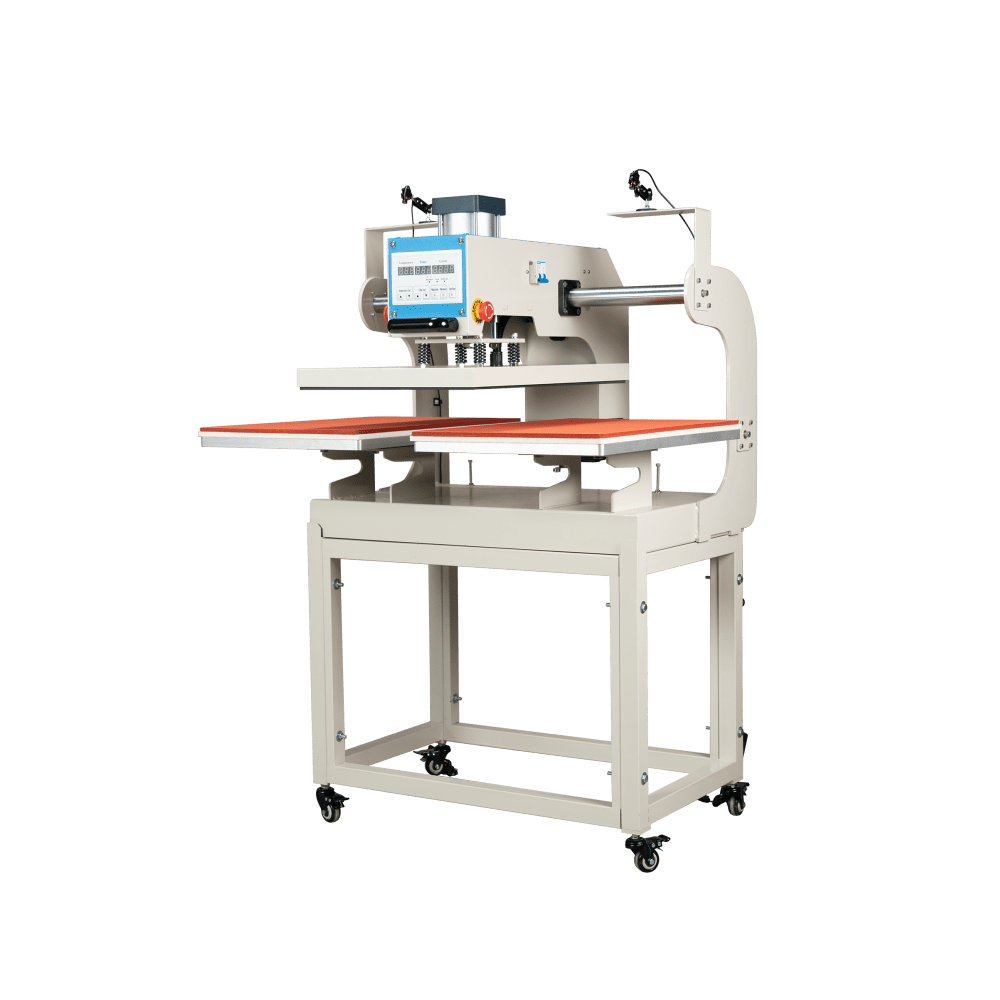

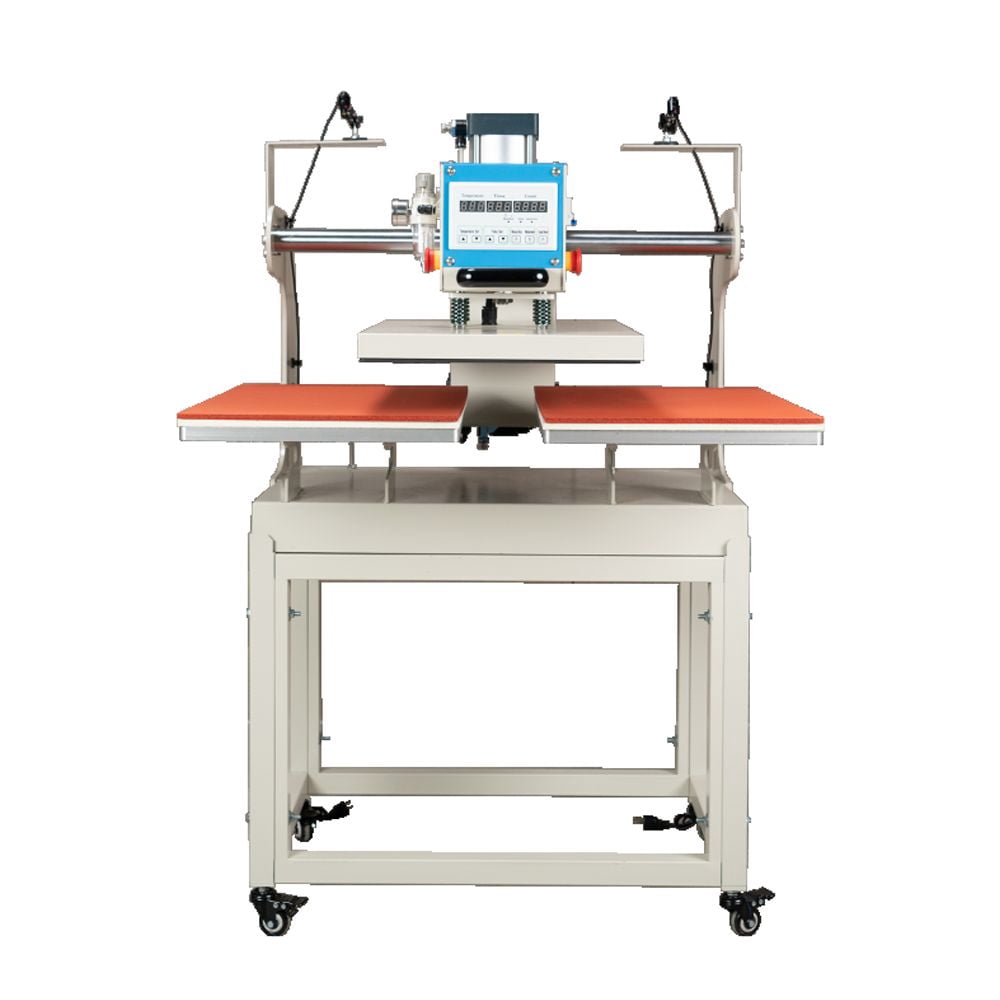

Pneumatic Up Sliding Dual Platen Heat Press Machine with Infrared Positioning, 16" x 24" Heat Plate, White + Blue

This advanced heat press machine is designed for precision and efficiency. With a full digital integrated display control and a large LCD screen, you can easily set the temperature, time, and count. The high-accuracy signal indication ensures that you know exactly when the pressing process is complete. The heating tube and plate are integrated, providing quick and even heating, while also ensuring safety and durability. The machine can be adjusted to a pressure of up to 0.8Mpa, with a stable and convenient sliding track for efficient operation. For general heat printing, a pressure range of 0.4Mpa to 0.6Mpa is recommended. A special high-temperature cloth is included for hot stamping, and the lower plate is covered with a silicon mat and sponge for even heating pressure. The automation feature activates once the backside inductive screw is touched, making it perfect for small item printing. For added safety, an emergency stop button is provided, and the pressure adjusting knob allows for easy adjustment of different pressures. This heat press machine requires an air compressor (not included) for operation. The lower aluminum plate comes with a separate stand, making it more convenient to set finished clothes. The base frame ensures stability during printing and easy movement with brake casters.

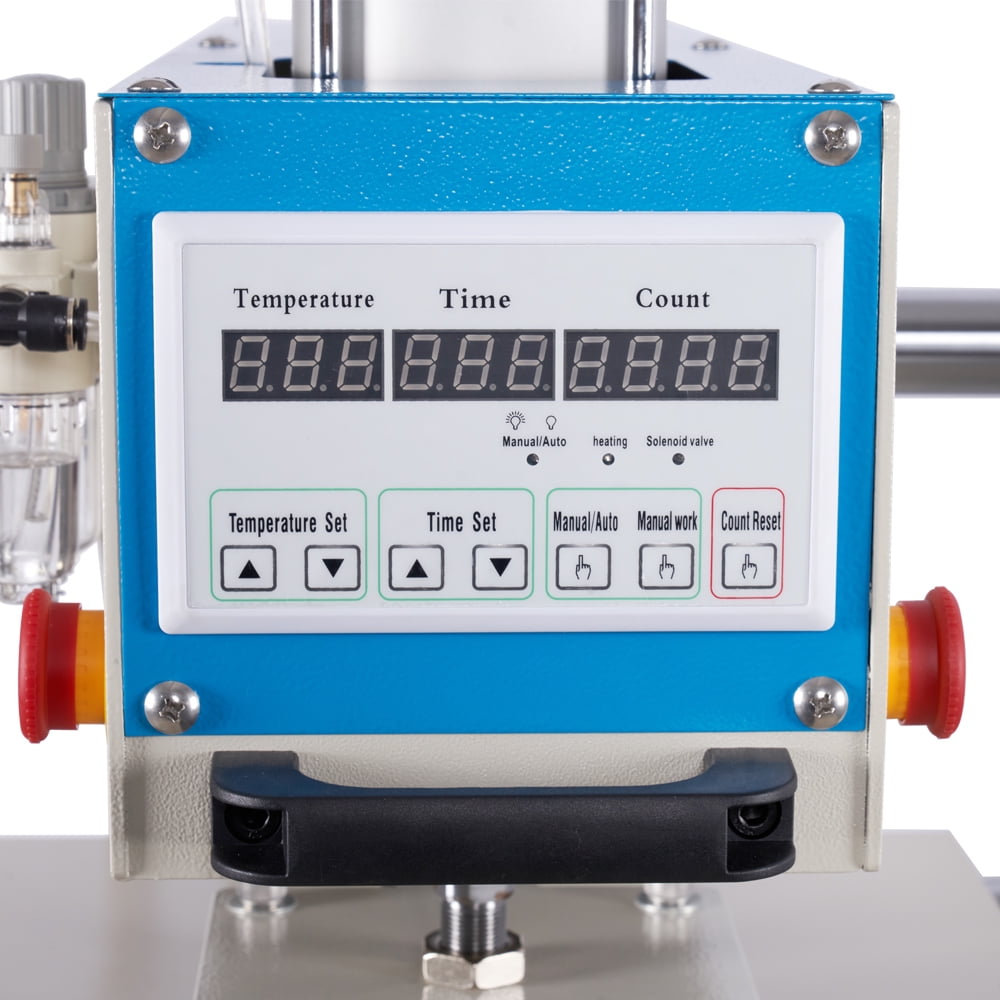

• • Full Digital Control: Large LCD display for setting temperature, time, and count.
  • Integrated Heating: Quick and even heating with a durable design.

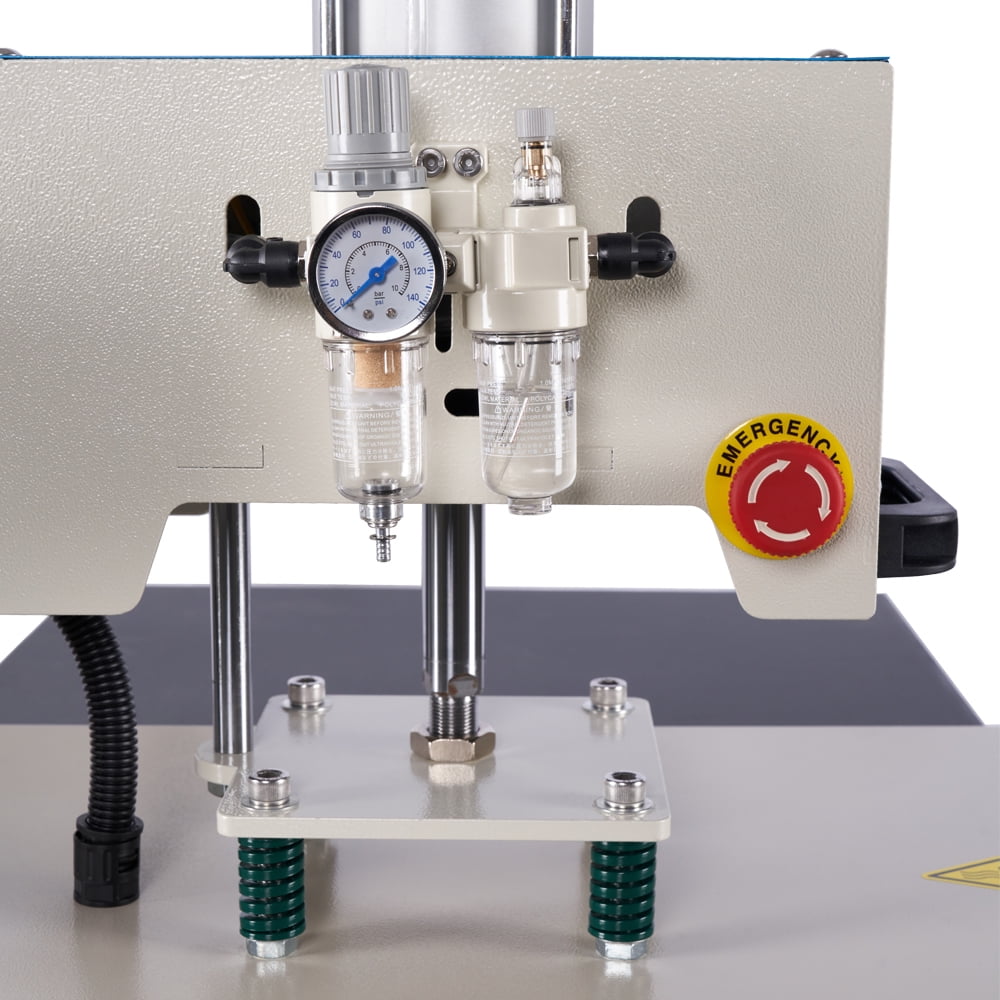

  • Emergency Stop Button: For immediate stop in urgent cases.

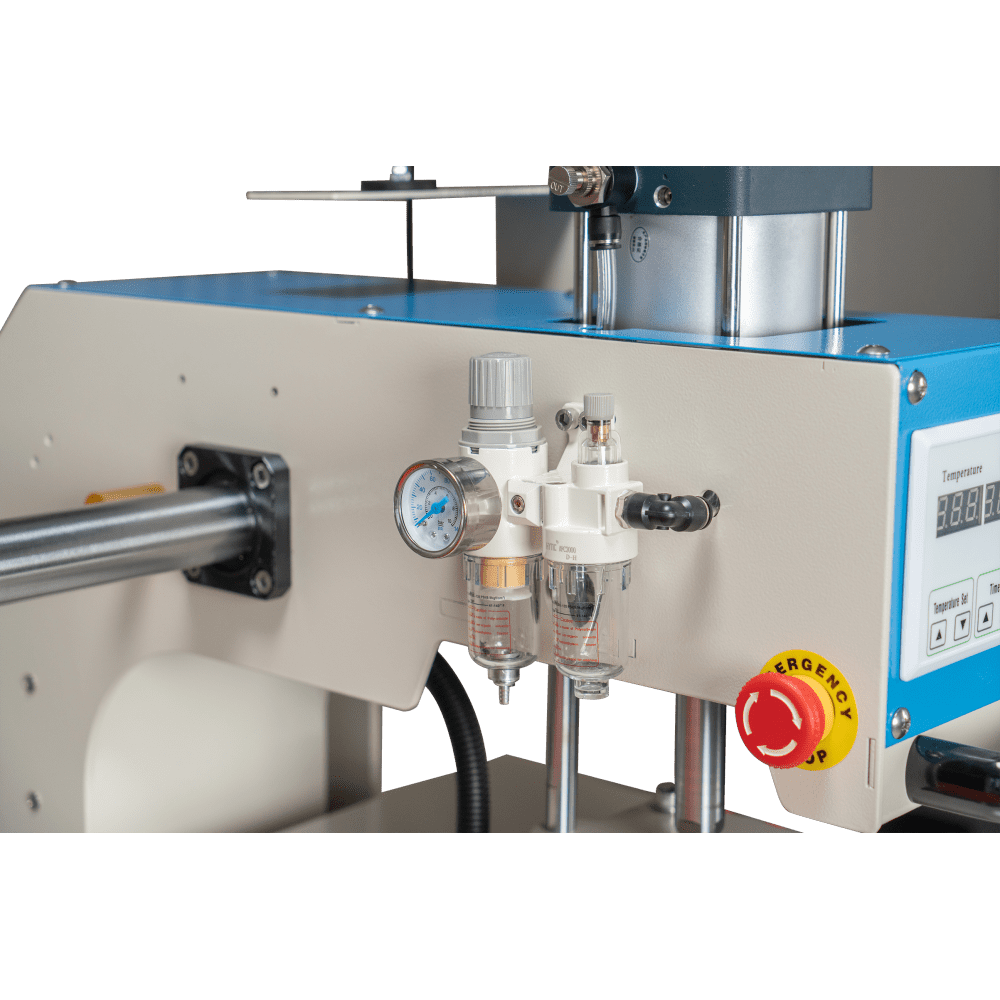

  • Pressure Adjusting Knob: Easy to adjust for different pressure needs. Up to 0.8Mpa, with a recommended range of 0.4Mpa-0.6Mpa.
  • Stable Base Frame: Ensures stability and easy movement with brake casters.
• Product Specifications:
  • Color: White + Blue
  • Material: Aluminium
  • Product Dimensions (inches): 35.00L x 33.00W x 52.00H
  • Product Weight (lbs): 284.45
  • Voltage (V): 110V/60HZ
  • Power (KW): 1.6
  • Temperature (℃): 0~299
  • Delaying Time (S): 1~999
  • Accept Thickness: Max. 2.36'' Thick Items
  • Range of Application: Pure Cotton, Polyester, Chemical Fiber, Pearl Board, Metal Pendant, Mousepad, Vitrolite, Ceramics
  • Pure Cotton Time: 15s~25s
  • Polyester Time: 40s
  • Chemical Fiber Time: 10s~40s
  • Pearl Board Time: 60s~100s
  • Metal Pendant Time: 60s
  • Mousepad Time: 50s
  • Vitrolite Time: 180s
  • Ceramics Time: 180s
  • Temperature Requirements of Different Materials
  • Pure Cotton: 356℉~428℉ (180℃~220℃)
  • Polyester: 356℉ (180℃)
  • Chemical Fiber: 302℉~356℉ (150℃~180℃)
  • Pearl Board: 356℉ (180℃)
  • Metal Pendant: 356℉ (180℃)
  • Mousepad: 374℉ (190℃)
  • Vitrolite: 392℉ (200℃)
  • Ceramics: 356℉~428℉ (180℃~220℃)
